Machine models
MTG SERIES is a third generation geotechnical drill machine. The machines are built to be user-friendly and to withstand hard work and various weather conditions. The machines have a number of new and innovative technological solutions and are constantly being developed.
The new drillmast is built of high-strength steel which is angled in shape to withstand even greater forces. The high-strength steel chassis is designed to withstand the high load caused by drilling. The chassis has been built to be self-supporting and is therefore very strong.
Thanks to the newly designed chassis solution and rubber tracks, the ground pressure is low and the machine also has excellent off-road driving characteristics. Because of rubber tracks, damage to the environment is also minimal.
In addition, the operator of the machine is able to reliably control all components on the radio, if desired, through the new “Geoelectric Auto Drill System” program.
DIMENSIONS
Weight 2100-2350 kg
Length (transport) 2850mm
Width 1 300mm
Height (transport) 1750mm
Clearance 270mm
MTG1000
The lightest MTG SERIES machine, you are able to do most soundings and light penetration drilling and sampling with this machine.
ENGINE AND CHASSIS
Engine 36kW diesel
300mm wide tracks
4 carrying wheels
2 drive wheels
2 hydraulically tensioning wheel
DRILLMAST
Stroke 1 600mm
Feed force 40kN (Theoretical)
Lift force 60kN (Theoretical)
One gear drill head
Powerful pushing rod lock (able to open from front)
Mast sideways tilt 8° in either direction
DRILLGEAR
Gear 1 1 350Nm, 0-80Rpm
DIMENSIONS
Weight 2300-2600 kg
Length (transport) 3 025mm
Width 1 400mm
Height (transport) 1 670-1850mm
Clearance 295mm
MTG2000
The light MTG SERIES machine, you are able to do most soundings and light penetration drilling and sampling with this machine.
MACHINE AND CHASSIS
Machine 36kW diesel
300mm wide tracks
4 carrying wheels
2 drive wheels
2 hydraulically tensioning wheels
DRILLMAST
Stroke 1 600/2 400mm
Feed force 40kN
Lift force 60kN
One gear drill head
Rod lock Side-squeezing scissor lock
Mast sideways tilt 8 ° in either direction
DRILLGEAR
Gear 1 1 350 Nm, 0-80 Rpm
DIMENSIONS
Weight 2700-3000 kg
Length (transport) 3300 (with 2400mm stroke)
Width 1 400-1 600mm
Height (transport) 1 670-1 850mm
Clearance 270mm
MTG2500
The light MTG SERIES machine, you are able to do most soundings and light penetration drilling and sampling with this machine.
MACHINE AND CHASSIS
Engine 36kW diesel
300mm wide track
4 carrying wheels
2 drive wheels
2 hydraulically tensioning wheels
DRILLMAST
Stroke 1 600/2400mm
Feed force 40kN (Theoretical)
Lift force 60kN (Theoretical)
Double gear drill head with hydraulically operated side shift
Powerful pushing rod lock (able to open from front)
Mast sideways tilt 8° in either direction
DRILL GEARS
Gear 1 1 350Nm, 0-80Rpm
Gear 2 1 350Nm, 0-80Rpm
DIMENSIONS
Weight 4 200-4 800kg
Length (transport) 3 900-4 400mm
Width 1 850mm
Height (transport) 1 995-2 100mm
Clearance 425mm
MTG3000
Mid-Range MTG SERIES machine, for most geotechnical soundings and shallow drillings.
MACHINE AND CHASSIS
Machine 55-70kW diesel
350mm wide rubber track
2 boggie pairs – 8 carrying wheels
2 drive wheels
2 hydraulically tensioning wheels
DRILLMAST
Stroke 2 400mm
Feed force 80kN (Theoretical)
Lift force 110kN (Theoretical)
Double gear drill head with hydraulically operated side shift
Rod lock One side-squeezing or two locks with opening motion
Mast sideways tilt 10 ° in either direction
DRILL GEARS
Gear 1 2200 Nm, 0-62Rpm
Gear 2 2200 Nm, 0-62Rpm
DIMENSIONS
Weight 4 800-5 300kg
Length (transport) 3 900-4 400mm
Width 1 950mm
Height (transport) 2 150mm
Clearance 400mm
MTG4000
ENGINE AND CHASSIS
Engine 90 -100kW diesel
350mm wide rubber track
2 boggie pairs – 8 carrying wheels
2 Drive wheels
2 hydraulically tensioning wheels
DRILLMAST
Stroke 2 400mm
Feed force 80kN (Theoretical)
Lift force 110kN (Theoretical)
Double gear drill head with hydraulically operated side shift
Rod lock one side-squeezing or two locks with opening motion
Mast ideways tilt 10° in either direction
DRILL GEARS
Gear 1 2 800Nm, 0-80Rpm
Gear 2 2 800Nm, 0-80Rpm
DIMENSIONS
Weight 5000-6000kg
Length (transport) 4500-4750mm
Width 1 950mm
Height (transport) 2 170mm
Clearance 410mm
MTG5000
ENGINE AND CHASSIS
Engine 100kW diesel
400mm wide rubber track
2 boggie pairs – 8 carrying wheels
2 Drive wheels
2 hydraulically tensioning wheels
DRILLMAST
Stroke 2 400mm
Feed force 90kN (Theoretical)
Lift force 120kN (Theoretical)
Double gear drill head with hydraulically operated side shift
Rod lock one side-squeezing or two locks with opening motion
Mast sideways tilt 10° in either direction
DRILL GEARS
Gear 1 2 800Nm, 0-80Rpm
Gear 2 3400/6800Nm, 0-70/0-35Rpm (Doofor vrs 1700/3400Nm 0-140/0-70Rpm
DIMENSIONS
Weight 7 800-8 500kg
Length (transport) 5 420mm
Width 2 200mm
Height (transport) 2 250mm
Clearance 500mm
MTG7000
The largest and most powerful MTG SERIES machine, with this machine you are able to do all geotechnical soundings and deep drilling, as well as diamond coring and sampling.
MACHINE AND CASSIS
Machine 110-130kW diesel
450mm wide rubber track
3 pairs of boggies – 12 carrying wheels
2 drive wheels
2 hydraulically tensioning wheels
DRILLMAST
Stroke 2 400mm / 2 700mm
Feed force 140kN (Theoretical)
Lift force 180kN (Theoretical)
Double gear drill with hydraulically operated side shift
Rod lock One side-squeezing or two locks with opening motion
Mast sideways tilt 12 ° in either direction
DRILL GEARS
Gear 1 8000Nm / 4000Nm 0-35Rpm / 0-70Rpm (Doofor vrs 3100Nm 0-80Rpm, 1600Nm 0-160Rpm)
Gear 2 2800Nm, 0-90Rpm
DIMENSIONS
Weight 13 000-14 000kg
Length (transport) 7 300mm
Width 2 400mm
Height (transport) 2 450mm
Clearance 620mm

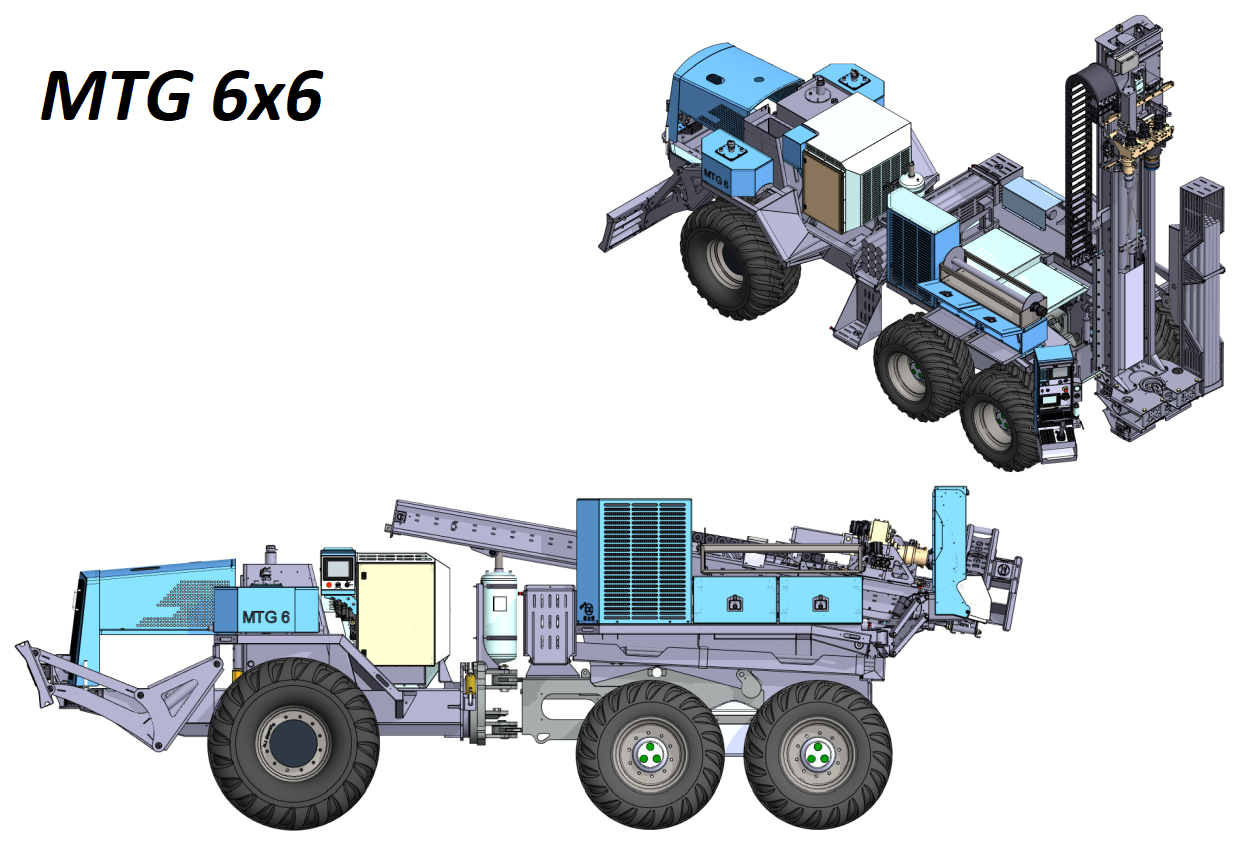

MTG6
ENGINE AND CHASSIS
Engine 130W diesel
Electronically controlled hydrostatic continuous 6 wheel drive
DRILLMAST
Stroke 2 400mm / 2700mm
Feed force 140kN (Theoretical)
Lift force 180kN (Theoretical)
Double gear drill head with hydraulically operated side shift
Rod lock one side-squeezing or two locks with opening motion
Mast sideways tilt 12° in either direction
DRILL GEARS
Gear 1 2 800Nm, 0-90Rpm
Gear 2 4000/8000Nm, 0-70/0-35Rpm (Doofor vrs 1600/3100Nm 0-80/0-160Rpm)
DIMENSIONS
Weight 6500-7500kg
Length (transport) 5 150mm
Width 2 200mm
Height (transport) 2 200mm
Clearance 410mm
MTG E
ENGINE AND CHASSIS
Engine FULLY ELECTRIC BATTERY POWERED
400mm wide rubber track
2 boggie pairs – 8 carrying wheels
2 Drive wheels
2 hydraulically tensioning wheels
DRILLMAST
Stroke 2 400mm
Feed force 90kN (Theoretical)
Lift force 120kN (Theoretical)
Double gear drill head with hydraulically operated side shift
Rod lock one side-squeezing or two locks with opening motion
Mast sideways tilt 10° in either direction
DRILL GEARS
Gear 1 2 800Nm, 0-80Rpm
Gear 2 3400/6800Nm, 0-70/0-35Rpm (Doofor vrs 1700/3400Nm 0-140/0-70Rpm
